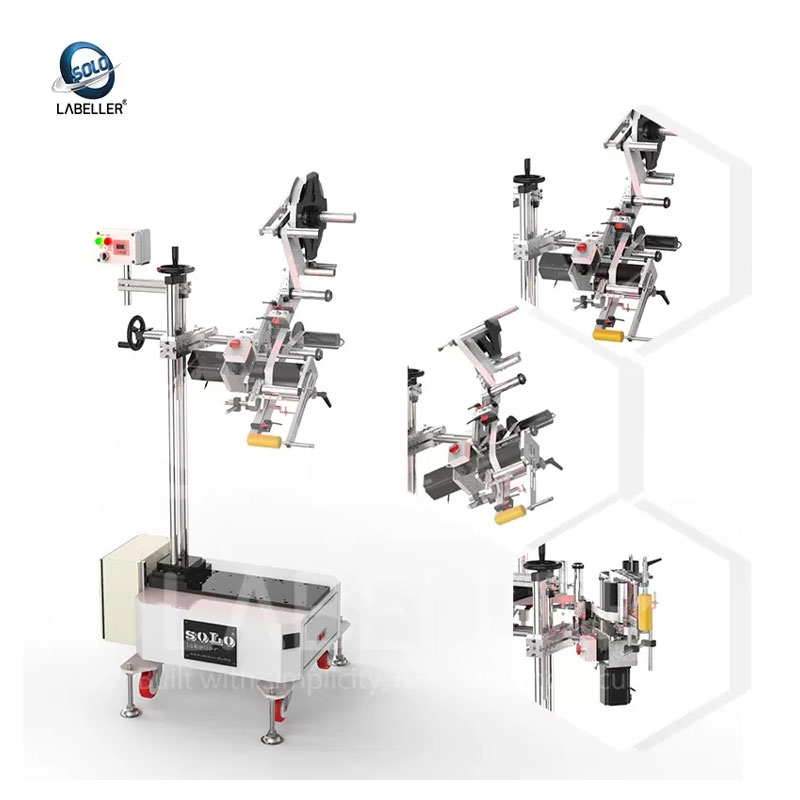

Solo Flexcy Applicator (Top / Tilt / Side)
Application :
Bottles, carton boxes, containers, etc .
Features :
Flexibility
• The Solo Flexcy Applicator consists of a label applicator that can be adjusted for various labelling applications without affecting the accuracy of label application.
• Able to set-up whether to apply a label on top or side of the product.
• Machines can be set-up in-line depending on your production needs with modular design, where the machine can be easily moved around at ease.
User-friendly
• Features teach-in label gap sensor that makes label roll changing between batches a relatively simple task.
• Comes with a push button, allows the label gap sensor to detect label distances easily.
• Feature preventive function to prevent the wastage of labelling outcome such as :
– Label lock function to stop label dispensing when gap sensor malfunction.
– Alarm interlocking protection system for label finish, label break and label gap sensor faulty.
– Prevent multiple label dispensing on single product application.
Machine Specifications :
• Label Dispensing Speed : 27 m/min
• Output Capacity : 40 – 50 pcs/min base on product length 420mm + gap distance = 600mm (depends on the label length, product length/diameter, product gap distance, label dispensing speed and loading skill).
• Max Product Dimensions : 120 mm [upgradeable]
• Accuracy :
– Label Dispensing: ± 0.5 mm
– Label Placement: ± 1-2 mm (depending product shape & its consistency)
• Label Peel Plate Height :
– Top Labelling: 500 – 1040 mm
– Side Labelling: 650 – 1400 mm
• Label Dimensions : 20 – 120 mm (W) [upgradeable] × 20 – 400 mm (L) [adjustable]
• Label Roll Diameter : 76 mm (Inner) / Max 300 mm (Outer) [upgradeable]
• Machine Dimensions : Approx. 650 mm (L) × 590mm (W) × 1500 mm (H)
